The Roth Panel System allows the installation of radiant heating in an existing house as well as in new construction. It is lightweight, easily installed over solid subfloor or concrete and is only 3/4" thick for the 3/8" tubing or 1" thick for the 1/2" tubing.

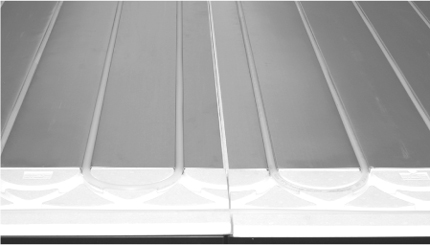

The Roth Radiant Floor Panel System is an easily assembled PEX tubing track system that allows simple installation of hydronic radiant floor heating over an existing subfloor. The system is designed around a 90 psi (6.3 kg/ cm2) high density polystyrene foam field panel with a bonded 24 ga. aluminum sheet on top. The foam provides thermal insulation below the panel and the aluminum provides even heat distribution focused directly at the finished floor material. The low profile of this product allows for easy retrofit and the light weight makes it easy to use in new construction. The 2' x 4' (61 cm x 122 cm) field panels make installation faster than other available products. The field panels have tracks that allow the tubing to be snapped in (no adhesive is required) on either 6" (15.25 cm) or 12" (30.5 cm) centers. Radius panels for return bends and twin tube transition panels, to route tubing to the heated area, are included with each box of the Floor Panel System. Additional radius panels are available separately, if needed. The Floor Panel System for 3/8" PEX tubing is 3/4" (1.9 cm) thick and provides an approximate downward insulation value of R=3.7. The Floor Panel System for 1/2" PEX tubing is 1" (2.5 cm) and provides an approximate downward insulation value of R=4.5. The full-face aluminum sheet on the field panel provides heating characteristics similar to a lightweight concrete overpour, but at lower fluid temperatures and with faster pick-up times

Radiant Panel System Packages are available for 3/8" and 1/2" tubing. Each box consists of the following parts and will cover 96 sq.ft.:

• 10 2' x 4' Master Panels
• 6 Radius Panels
• 12 Transition Panels



1. Basement slab options A) Roth PEX tubing is tied to reinforced mesh before concrete slab is poured. B) Roth Radiant Panel System is installed directly on concrete slab and Roth PEX tubing is snapped in.
1A. PEX tubing in slab		1B. Roth Radiant Panel System on slab
2. Suspended wood sub floor options A) Roth PEX tubing is positioned under a suspended wood sub floor in aluminium heat transfer plates or C-fin plates. B) Roth Radiant Panel System is installed directly above the suspended wood sub floor and Roth PEX tubing is snapped in.
2A. Suspended wood sub floor and aluminum panel or C-fin plates		2B. Roth Radiant Panel System on suspended wood sub floor
3. Ceramic flooring on suspended wood sub floor A) Roth PEX tubing is stapled onto wood sub floor before gypsum base or lightweight concrete is poured. B) The Roth Radiant Panel System is screwed to the wood sub floor and the Roth PEX tubing is snapped in. A concrete board is secured and the seams are filled in preparation for the ceramic tiles or stone.
3A. Light concrete is poured onto suspended wood sub floor		3B. Roth Radiant Panel System with cement board on suspended wood sub floor
4. Ceiling Option PEX tubing and heat transfer plates attach easily to ceiling joints.
4A. Aluminium plates on Celing



Roth has all fittings and tools available that the professional installer needs to complete the job.

Below are some of our accessories. Please refer to the Radiant Product Catalog for all of our accessories and parts.



	Heat Transfer Panels-Single Groove -for installation of radiant heating below the floor
	Heat Transfer Panels-Double Groove -for installation of radiant heating below the floor
	Thermo Fin Panels -for installation of radiant heating below the floor -two sizes available (for 1/2" and 3/8" tubing) -manufactured with 25% more material than other transfer plates in the market allowing for lower water temperatures and therefore higher system efficiencies -no pre-driller therefore higher installation freedom
	Hole Punch Kit -to be used for the T-Fin Panels
