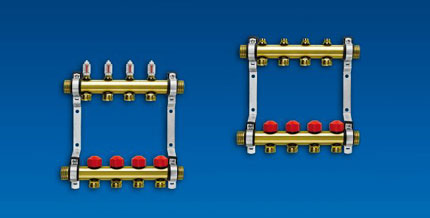

The Roth HK, HKV, and Commercial Manifolds are made of solid brass and come already assembled.



The Roth HK Heating Manifold with adjustable and closable flow indicators is made of heavy-walled, corrosion resistant brass alloy, 30 mm (1.2") inside dimension, with a 27.5 mm (1.1") flat gripping surface. The manifolds are available with 2-10 connections (except 9) for heating circuits. The manifolds have 1" G female threads on both ends so the piping connections can be made on either the left or right side.

• The supply manifold has flow indicators that have built-in adjustment and stop valves for adjusting the flow rate of each heating loop. The indicator is scaled from 0.02 to 1.5 US gal/min (0.1 to 6.0 l/min). The flow indicators are 2.17" (55 mm) on center.
• The return manifold has valve assemblies that can be used for isolation or for mounting thermostat-controlled electric actuators. The protective cap can be used to close this valve by completely tightening the cap. The valve assemblies are 2.17" (55 mm) on center.
• The drain and vent valve assemblies and supply/return adapters can be installed on either end of the manifold as required by the installation. The drain assembly can be rotated for easy purging of the air in the tubes.


HKV & HKV

Height	15" (380 mm)
Depth	3 1/2" (89 mm)
Max Operating Temperature	160F (70C) continuous
Max Operating Pressure	30 psi (2.1 bar) continuous
Recommended Test Pressure	45-60 psi (3.1-4.1 bar)
Flow rate	approx. 8 gallons/minute
Inside diameter	1"



HK

Manifold	Approx. length in (mm)	Part Number
HK2	10 1/2" (261 mm)	2315006872
HK3	12 1/2" (318 mm)	2315006873
HK4	14 1/2" (369 mm)	2315006874
HK5	16 1/2" (426 mm)	2315006875
HK6	18 1/2" (477 mm)	2315006876
HK7	21" (533 mm)	2315006877
HK8	23" (585 mm)	2315006878
HK10	27 1/2" (693 mm)	2315006880



HKV

Manifold	Approx. length in (mm)	Part Number
HKV2	10 1/2" (261 mm)	2315006883
HKV3	12 1/2" (318 mm)	2315006884
HKV4	14 1/2" (369 mm)	2315006885
HKV5	16 1/2" (426 mm)	2315006886
HKV6	18 1/2" (477 mm)	2315006887
HKV7	21" (533 mm)	2315006888
HKV8	23" (585 mm)	2315006889
HKV10	27 1/2" (693 mm)	2315006891



Commercial Manifolds

Height	20.125" (508 mm)
Depth	9.25" (235 mm)
Max Operating Temperature	160F (70C) continuous
Max Operating Pressure	30 psi (2.1 bar) continuous
Recommended Test Pressure	45-60 psi (3.1-4.1 bar)
Flow rate	approx. 26 gallons/minute
Inside diameter	1 1/2"



Manifold	Approx. length in (mm)	Part Number
Commercial Manifold 1 1/2"	7" (178 mm)	2335005193
Commercial Manifold 1 1/2"	10.16" (258 mm)	2335005194
Commercial Manifold 1 1/2"	13.31" (338 mm)	2335005195
Commercial Manifold 1 1/2"	16.46" (418 mm)	2335005196
Commercial Manifold 1 1/2"	19.61" (498 mm)	2335005197

Roth has all fittings and tools available that the professional installer needs to complete the job. Below are some of our accessories. Please refer to the Radiant Product Catalog for all of our accessories and parts.
	Recessed Cabinet (two sizes available) 29.13" L X 24.80" H X 4.33"-6.30" D (740mm x 24.8.5mm x 110 - 160mm) 44.94" L x 24.80" H x 4.33-6.30" D (1040mm x 630mm x 110-160mm)
	Cabinet (small holds up to 6 loops and large up to 8 loops) 29.92" L x25.59" H x 5.12" D (760mm x 650mm x 130mm) 41.73" L x25.59" H x 5.12" D (1060mm x 650mm x 130mm)
