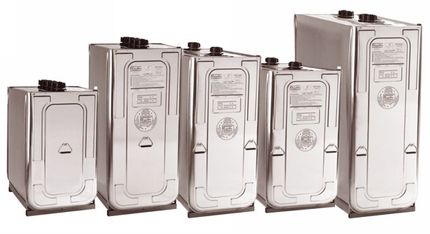

Roth Double-Wall Oil Storage Tanks (DWT)

Roth Double-Wall Oil Storage Tanks Residential Oil Fuel Tanks

Roth's state-of-the art double-wall tanks are the best you can find.

  • More for the environment

  • More for your safety

  • More quality

  • More than 4 million installed

  • ***NEW 30-YEAR PRODUCT WARRANTY***

Follow the links below for more information.


Overview
Roth Double-Wall Oil Storage Tanks Residential Oil Fuel Tanks

























Because you have every reason to insist on more...
now ready to hold biofuels (up to B20)ROTH Double-Wall Oil Storage Tanks offer the following compare to a standard single wall steel tank:

  • MORE FOR THE ENVIRONMENT
    Roth double-wall tanks are designed to offer the highest level of environmental protection. Avoid oil spills and leaks caused by defective pipes, couplings or fittings which are located underneath the tank.* Every inner Roth tank is made out of blow-molded, high-density polyethylene that is seamless, absolutely leak-proof and corrosion-resistant. In addition, Roth tanks feature top connections to ensure the oil stays where it should. The outer tank is made of lead-proof corrosion resistant steel which is capable of containing at least 110% of the capacity of the inner tank for maximum protection.
  • MORE FOR YOUR SAFETY
    Roth tanks are completely rust-free, inside and out. Minimize the potential dangers and disasters of oil spills and leaks caused by corrosion.* The outer tank is made out of galvanized steel, rollseamed (no welds) with an oil and fire resistant seal, making it one of the safest and most reliable tanks on the market. Roth uses state-of-the-art technology to ensure maximum storage safety and minimum space requirements.
  • MORE QUALITY
    At Roth, we refuse to compromise on material or construction. Forget about the problems of oil odors and the dangers of oil leaks.* Roth tanks exceed the most recent industry safety regulations. Quality control of our finished products is carried out according to exacting standards, ensuring consistent superior quality. Each tank undergoes thorough testing, including ultrasound tests to ensure optimal thickness of plastic and pressure testing to ensure the tank is sealed completely. Roth tanks can be used for heating oil, diesel and bio fuels (up to B20).
  • MORE THAN 4 MILLION TANKS INSTALLED
    Since 1971 more than 3 million Roth tanks have been installed in Europe and North America. Roth tanks last longer than ever before due to the outstanding quality and the unbeatable guarantee. That is why Roth tanks enjoy such an enviable reputation.
    *subject to limitations and conditions described in the warranty certificate
  • MORE WARRANTY THAN THE INDUSTRY AVERAGE

    Roth Industries has extended its current warranty policy to a 30-year limited warranty.  This warranty change covers failure of the tank due to workmanship or material defects as well as failure of the internal tank due to internal corrosion (the manner in which all steel tanks fail).  The warranty also includes $2M of insurance against property damages caused by spill.



Characteristics

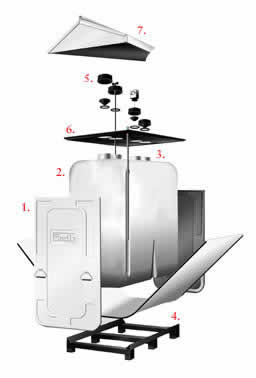

Roth Double-Wall Oil Storage Tanks Residential Oil Fuel Tanks Disected

1. Weld-free galvanized steel outer tank capable of holding 110% of the primary tank.



2. Seamless high-density polyethylene inner tank.



3. Highly visible optical leak alarm.



4. 55% lighter than a 12-gauge steel tank with a larger storage capacity.



5. Corrosion resistant steel filling system with external 2" thread, allowing for an even level in each tank when installed in groups.


6. Burner feeding system consisting of a fusible link valve and check valve incorporated with supply and return port when using the optional Roth suction assembly.



7. Cover for outside use

Installation of tanks is faster and easier than ever.

  • Up to 50% lighter than conventional steel tanks.
  • Wide handles on each end facilitates transport and handling.
  • Removable base facilitates access to tight spaces and offers greater stability.
  • Compact and economical design. (8 sq. ft. for 1000L)
  • The only tank on the market with no fittings below the oil line.
  • Unique expansion system ensures increase storage capacity and faster, easier fill-ups.
  • Completely sealed, every one of our tanks is pressure tested and meets exacting quality control standards.
  • Better than industry average warranty of 10 years insurance, $2 million clean up policy plus 30 year product warranty.

Specifications

Dimensions for individual tanks

 Tank Model  DWT 400L  DWT 620L  DWT 1000L  DWT 1000LH  DWT 1500L
 Nom. Capacity US gal (liters)  110 (400)  165 (620)  275 (1000)  275 (1000)  400 (1500)
 Length inches (cm)  29 (74)  29 (74)  43 (110)  51 (130)  64 (163)
 Width inches (cm)  28 (72)  28 (72)  28 (72)  30 (76)  30 (77)
 Height inches (cm)  44 (112)  61 (155)  61 (155)  54 (137)  68 (173)
 Min. Height Req'd inches (cm)  49 (125)  66 (168)  66 (168)  60 (152)  76 (193)
 Tank Weight lbs. (kg)  106 (48)  132 (60)  167 (76)  208 (94)  333 (151)
 Shipping Weight lbs. (kg)  115 (52)  143 (65)  185 (84)  230 (104)  358 (162)


Dimensions for grouped tanks

 Tank Model  DWT 400L  DWT 620L  DWT 1000L  DWT 1000LH  DWT 1500L
 2 Tanks
(side by side)
 29 x 60
(74 x 152)
 29 x 60
(74 x 152)
 43 x 60
(110 x 234)
 51 x 63
(130 x 160)
 64 x 63
(163 x 160)
 3 Tanks
(side by side)
 29 x 92
(74 x 234)
 29 x 92
(74 x 234)
 43 x 92
(110 x 234)
 51 x 96
(130 x 244)
 64 x 96
(163 x 244)
 4 Tanks
(side by side)
 29 x 124
(74 x 315)
 29 x 124
(74 x 315)
 43 x 124
(110 x 315)
 51 x 129
(130 x 329)
 N/A
 5 Tanks
(side by side)
 29 x156
(74 x 397)
 29 x156
(74 x 397)
 43 x 156
(110 x 397)
 51 x 162
(130 x 411)
 N/A
 2 Tanks
(end to end)
 N/A  N/A  28 x 90
(72 x 229)
 N/A  N/A

Accessories
Roth Fuel Oil Gauge for the Double-Wall Oil Storage Tanks Residential Oil Fuel Tanks

Fuel Oil Gauge

required with each tank installation

Roth Ventalarm for the Double-Wall Oil Storage Tanks Residential Oil Fuel Tanks

Ventalarm

required with each tank installation

Roth Duplex Bushing for the Double-Wall Oil Storage Tanks Residential Oil Fuel Tanks

Duplex Bushing

choose from either 1/2" or 3/8"

required with each tank installation

Roth Tank Cover for the Double-Wall Oil Storage Tanks Residential Oil Fuel Tanks Tank Cover
outside installation requires the tank cover
Roth Expansion Kits for the Double-Wall Oil Storage Tanks Residential Oil Fuel Tanks

Expansion Kits

to install multiple tanks

Roth Tie Down Kit for the Double-Wall Oil Storage Tanks Residential Oil Fuel Tanks

Tie Down Kit

required within xxfeet of water

Roth Leak Indicator for the Double-Wall Oil Storage Tanks Residential Oil Fuel Tanks

Leak Indicator

required with each installation
